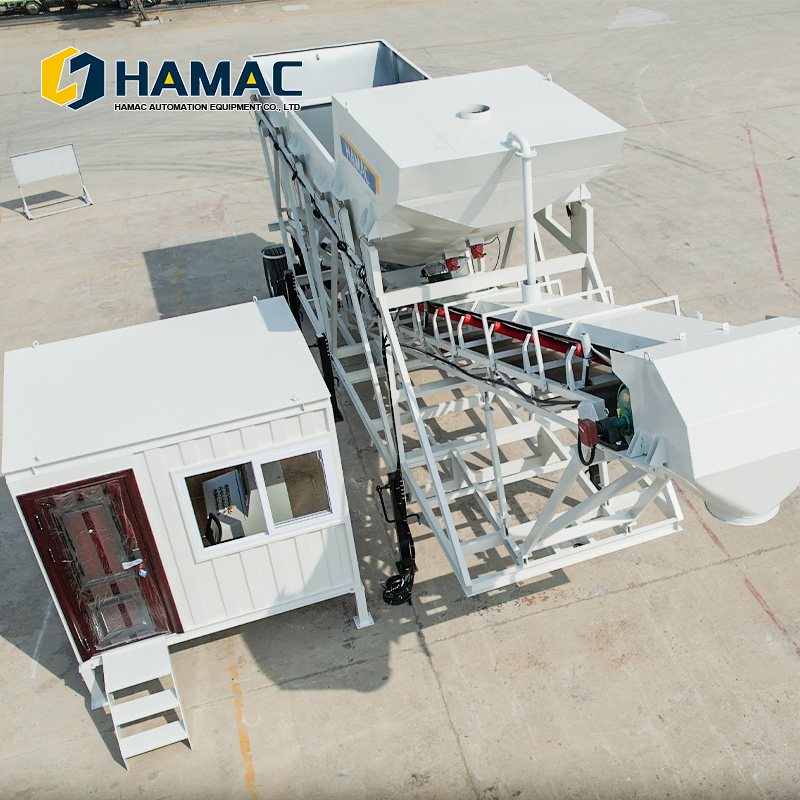

Hamac Hzm35 Customized Mobile Dry Prefabricated Mix Component Batching Mixing Plant
Hamac Hzm35 Customized Mobile Dry Prefabricated Mix Component Batching Mixing Plant
Hamac Hzm35 Customized Mobile Dry Prefabricated Mix Component Batching Mixing Plant
Hamac Hzm35 Customized Mobile Dry Prefabricated Mix Component Batching Mixing Plant
Hamac Hzm35 Customized Mobile Dry Prefabricated Mix Component Batching Mixing Plant
1 / 5
Hamac Hzm35 Customized Mobile Dry Prefabricated Mix Component Batching Mixing Plant
Hamac Hzm35 Customized Mobile Dry Prefabricated Mix Component Batching Mixing Plant
Hamac Hzm35 Customized Mobile Dry Prefabricated Mix Component Batching Mixing Plant
Hamac Hzm35 Customized Mobile Dry Prefabricated Mix Component Batching Mixing Plant
Hamac Hzm35 Customized Mobile Dry Prefabricated Mix Component Batching Mixing Plant

Hamac Hzm35 Customized Mobile Dry Prefabricated Mix Component Batching Mixing Plant

Customization: Available
Warranty: 1 Year
Type: Concrete Mixing Plant
Send Inquiry

Product Description

Basic Specifications
Model NO.
HZM35
Shotcrete Type
Dry
Machining Process
Hydraulic
Structure
Spiral Type
Productivity
50-240m³/H
Feeding Height
4100mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Customizable Colors
Theoretical Capacity
25 m³/H
Batching System
PLD1200
Discharging Height
3800mm
Max Aggregate Size
60(80)mm
Cycle Time
72s

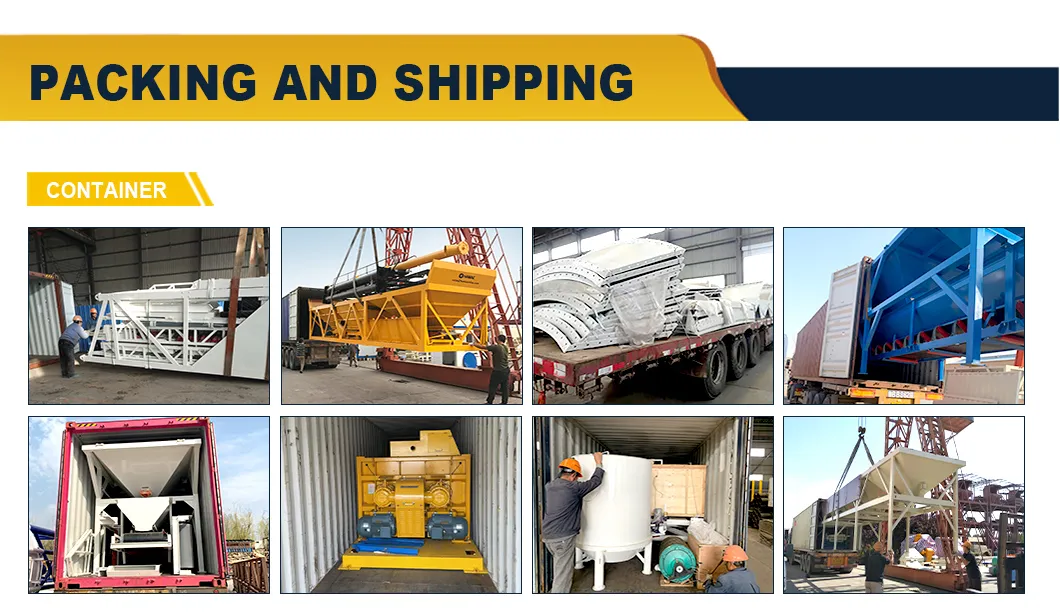

Packaging & Delivery
Package Size
760.00cm * 210.00cm * 418.00cm
Gross Weight
6200.000kg
Transport Package
Nude Packed in Container

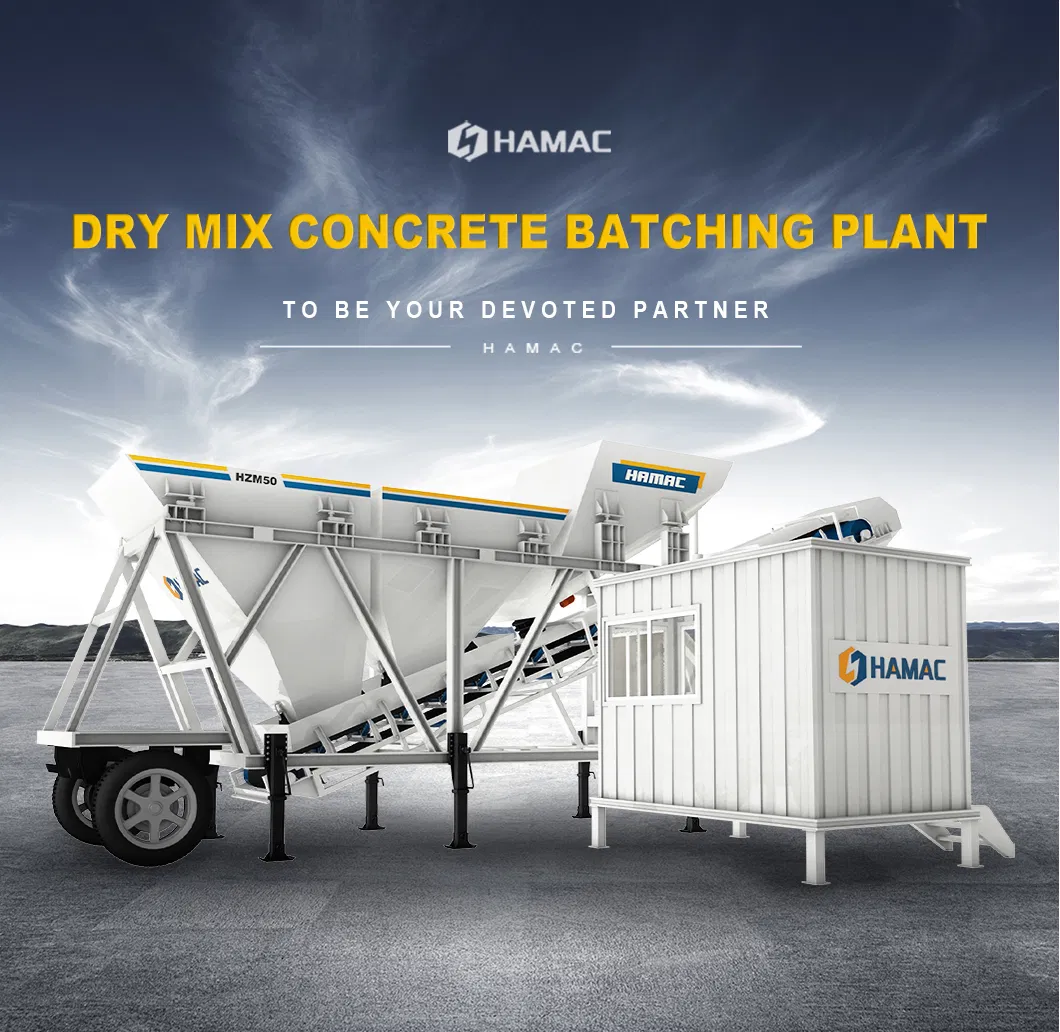

Mobile Dry Batching Plant

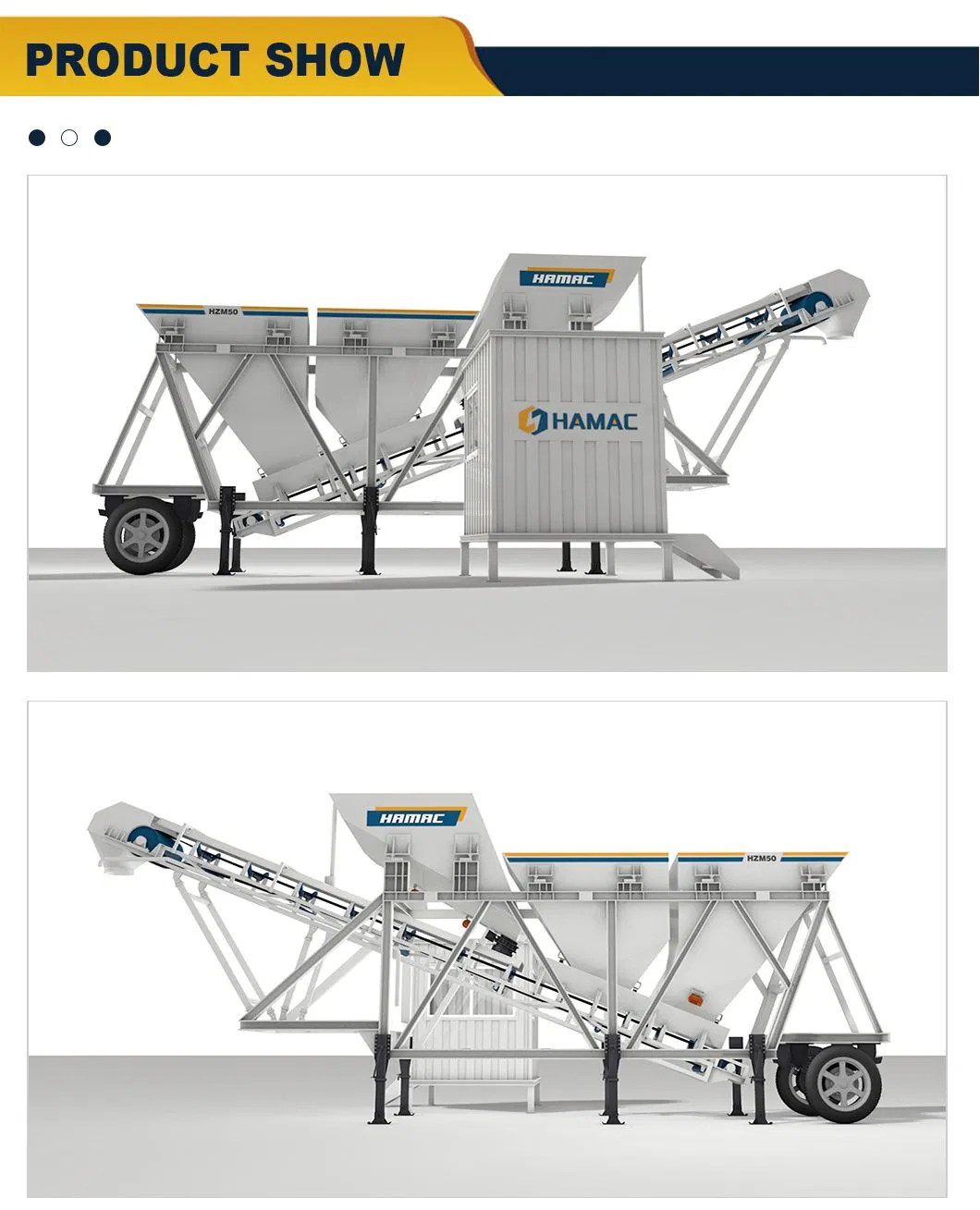

Mixing Component

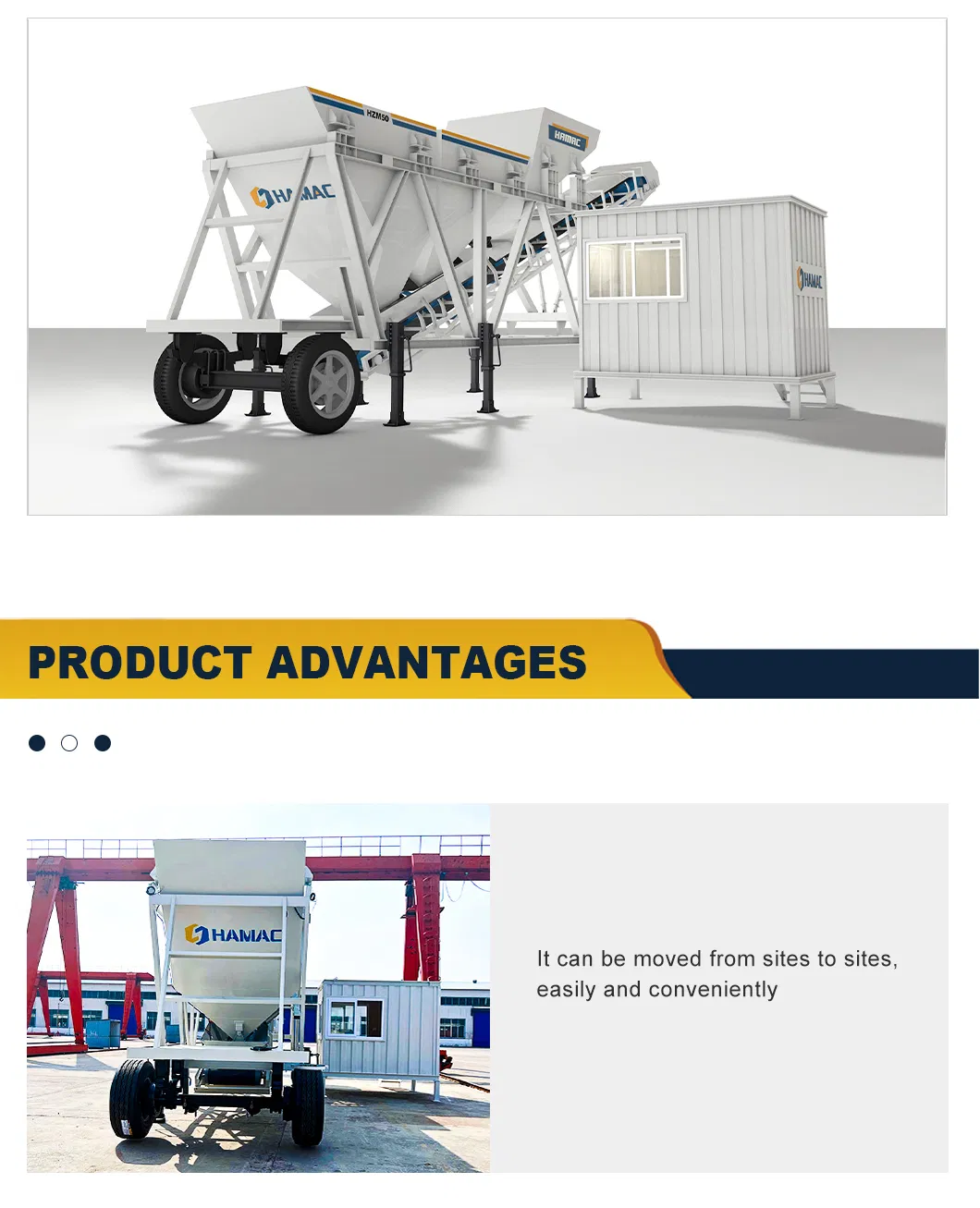

Customized Mixing Plant
Product Features
01
Belt Conveyor System: Used to transport the aggregate and sand efficiently into the truck concrete mixer.
02

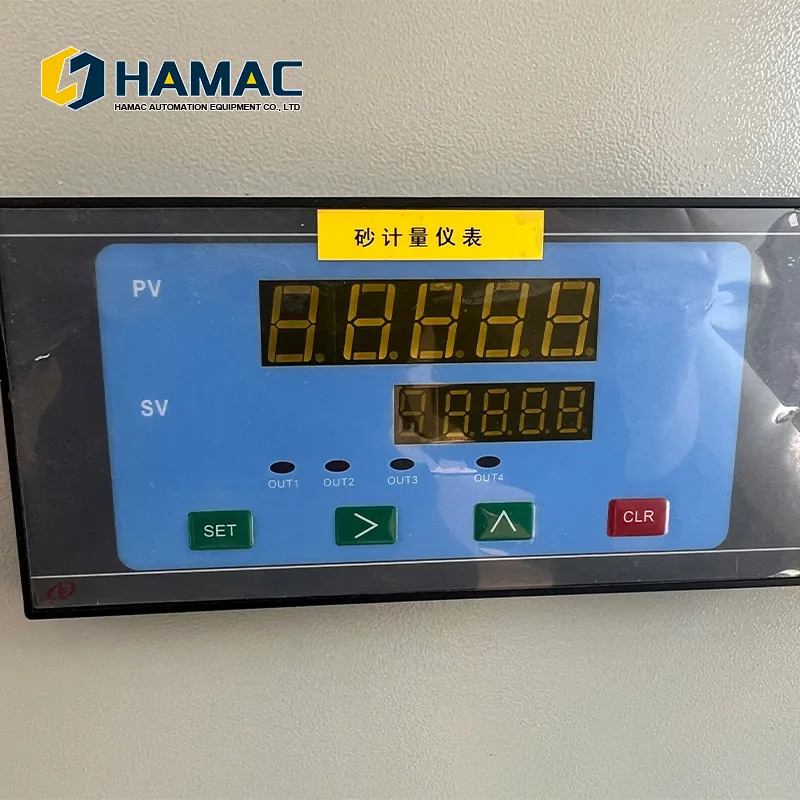

Precision Weighing System: Includes load cells for aggregate, sand, and cement. All materials are weighed accurately before being fed into the mixer truck.
03
Water Supplying System: Water is supplied via a pump controlled by a time-relay, ensuring precise water quantity by managing the pump's working duration.
04
Aggregate Pre-feeding: An alternative to loading ramps, removing the requirement for ramps and simplifying the charging process by wheel loaders.
05
Advanced Control System: Equipped with high-tech automation including SIEMENS and SCHNEIDER electronic components and PLC. Features user-friendly software for sophisticated operation.
06

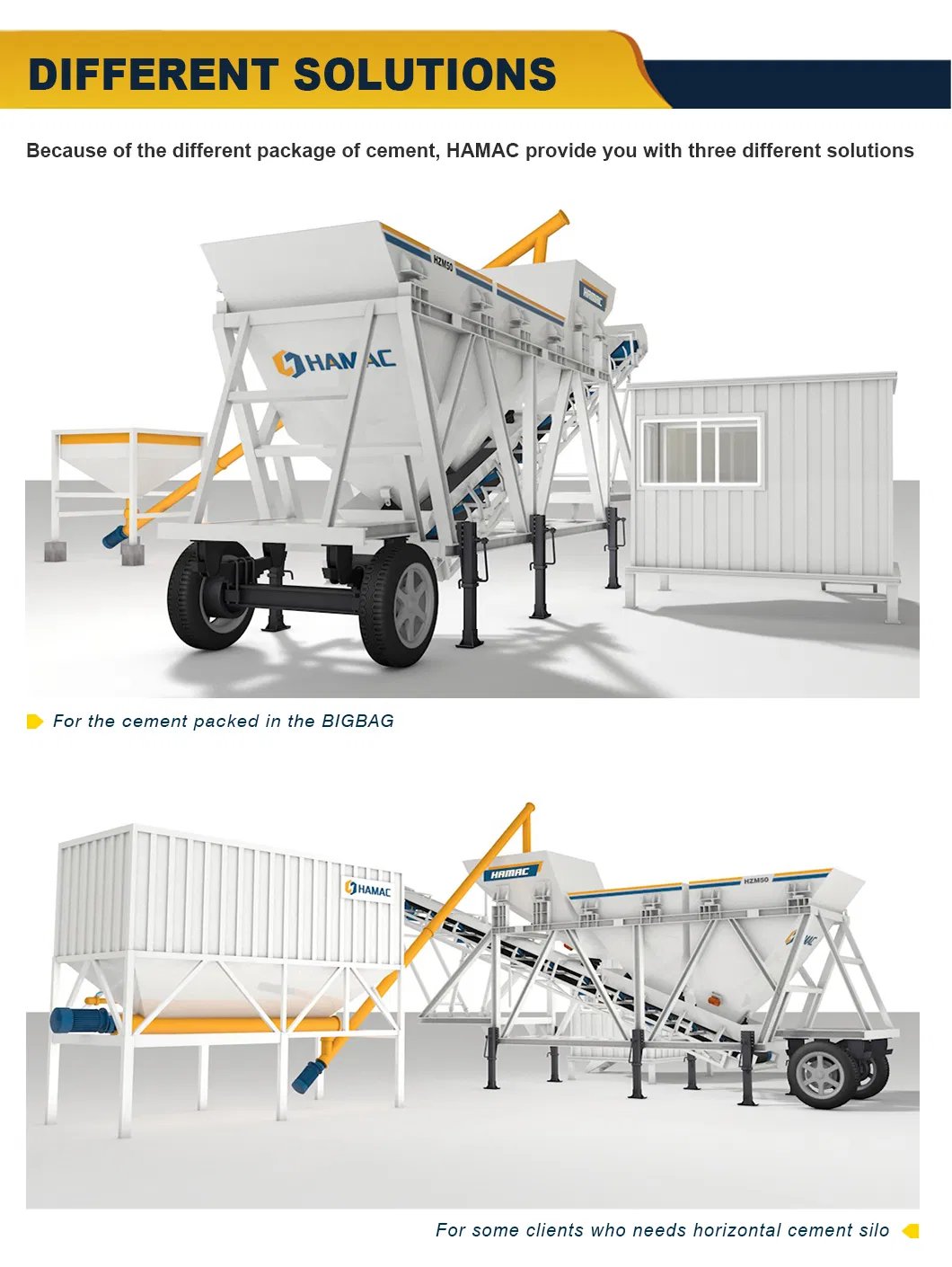

Cement Storage: Compatible with cement silos or hoppers ranging from 50 to 500 tons. Integrated big bag opening systems are available for bagged cement supply.

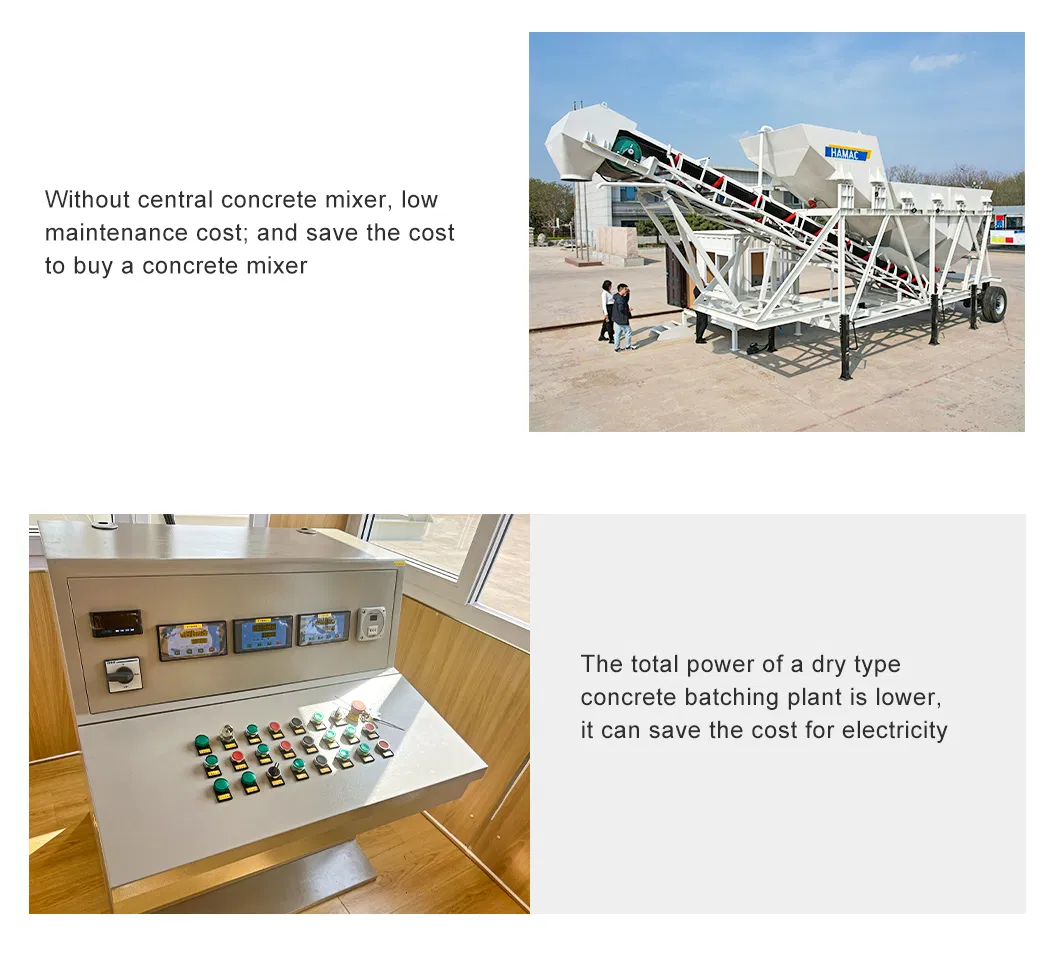

Batching Plant View

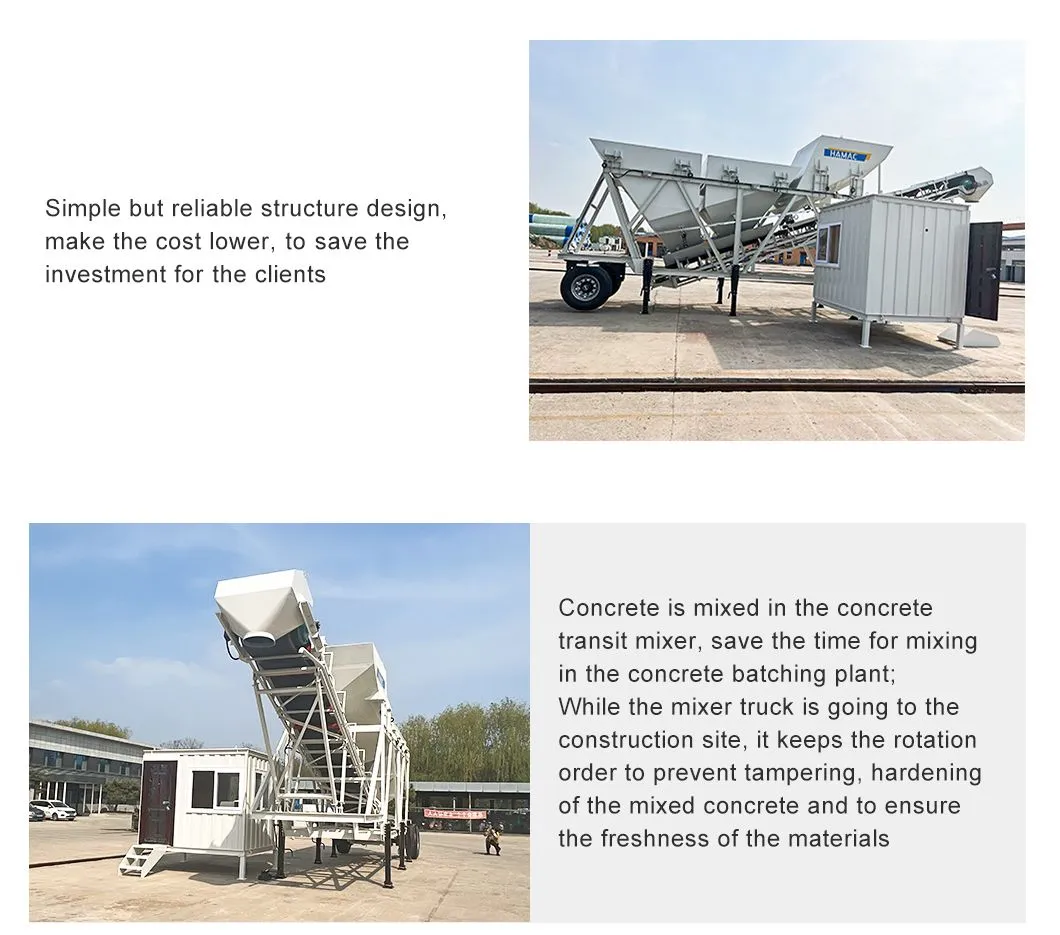

Plant Component

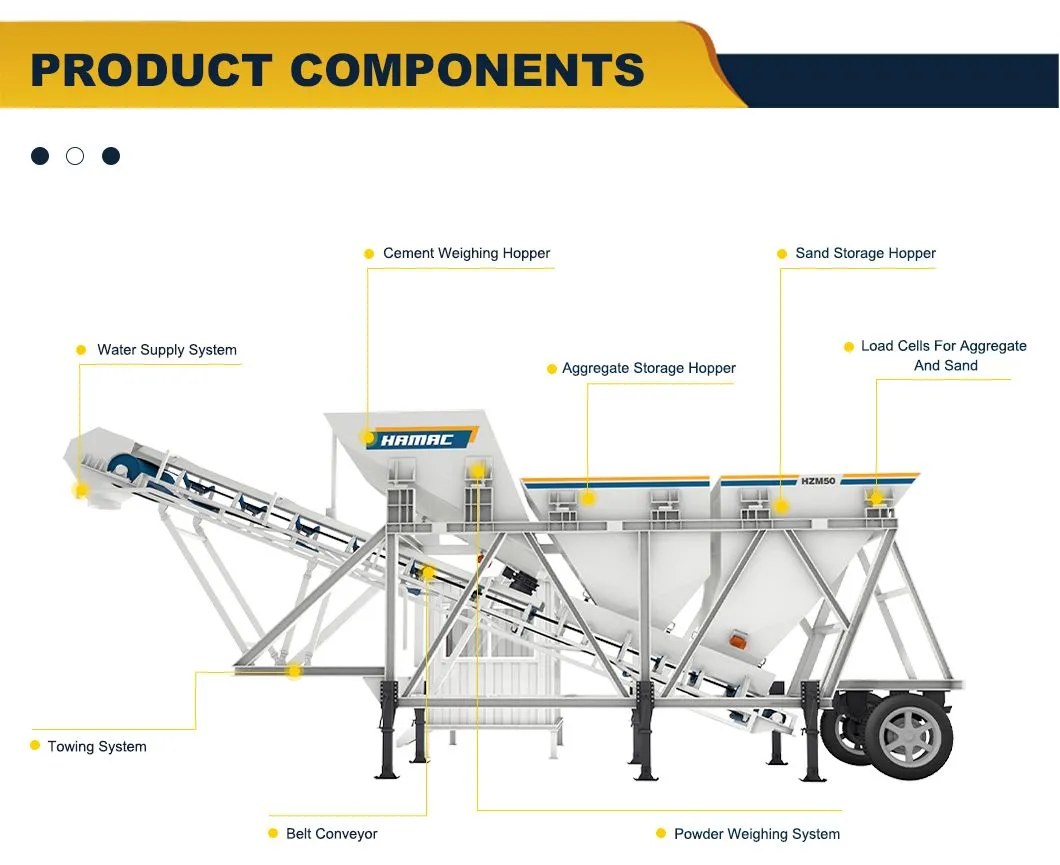

Industrial Mixer
Technical Data Comparison
Technical Data HZM25 HZM35 HZM50
Theoretical Capacity (m³/h) 25 35 50
Batching System PLD1200 PLD1200 PLD1600
Discharging Height (mm) 3800 3800 3800
Max Aggregates Size (mm) 60(80) 60(80) 60(80)
Automatic Cycle Time (s) 72 72 72

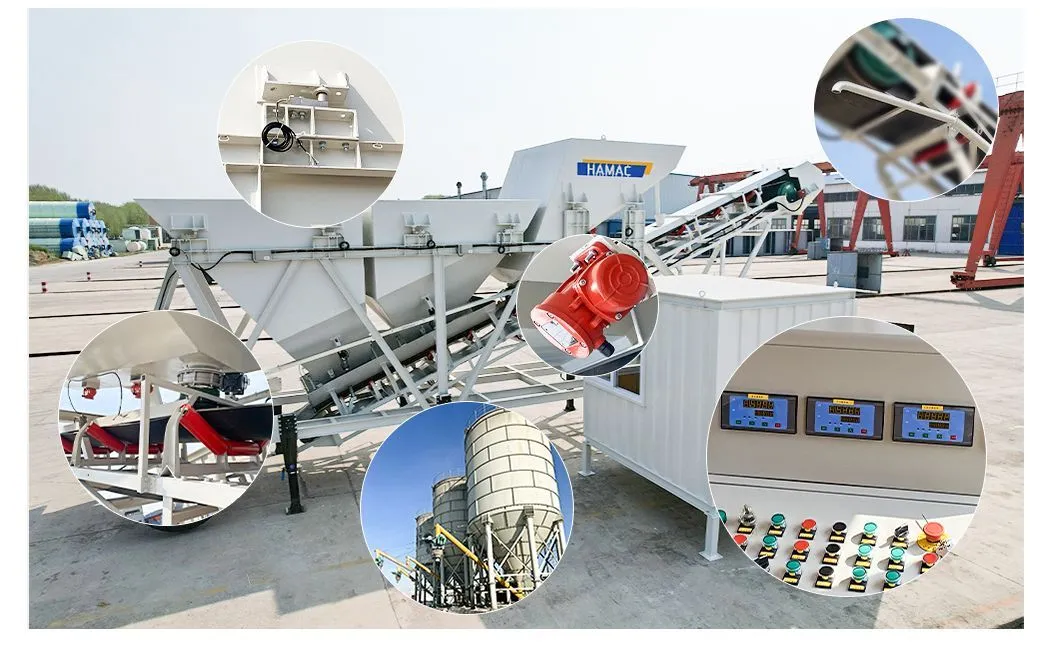

System Layout
Site Installation

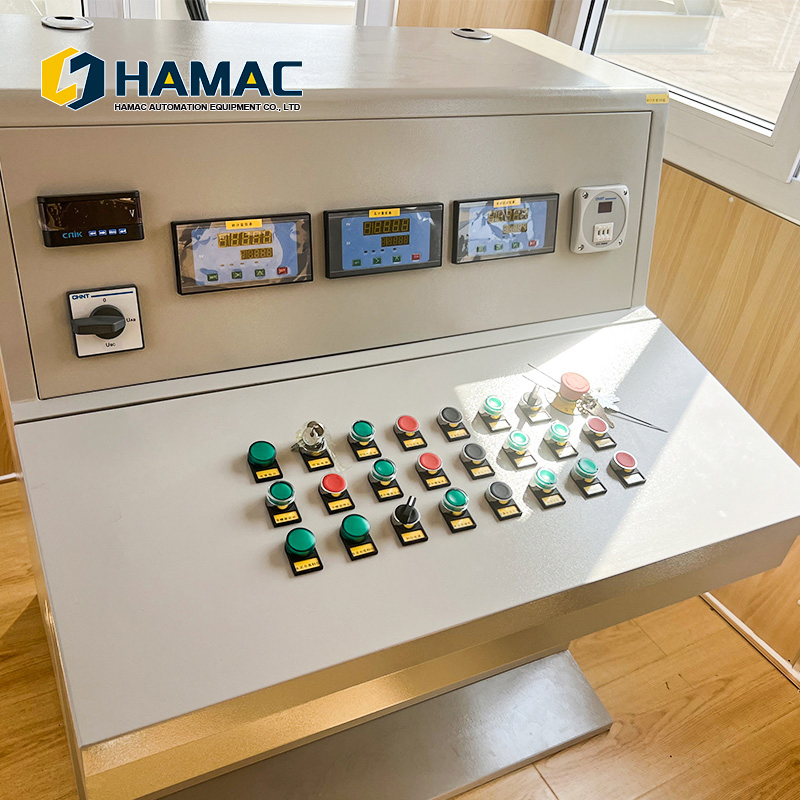

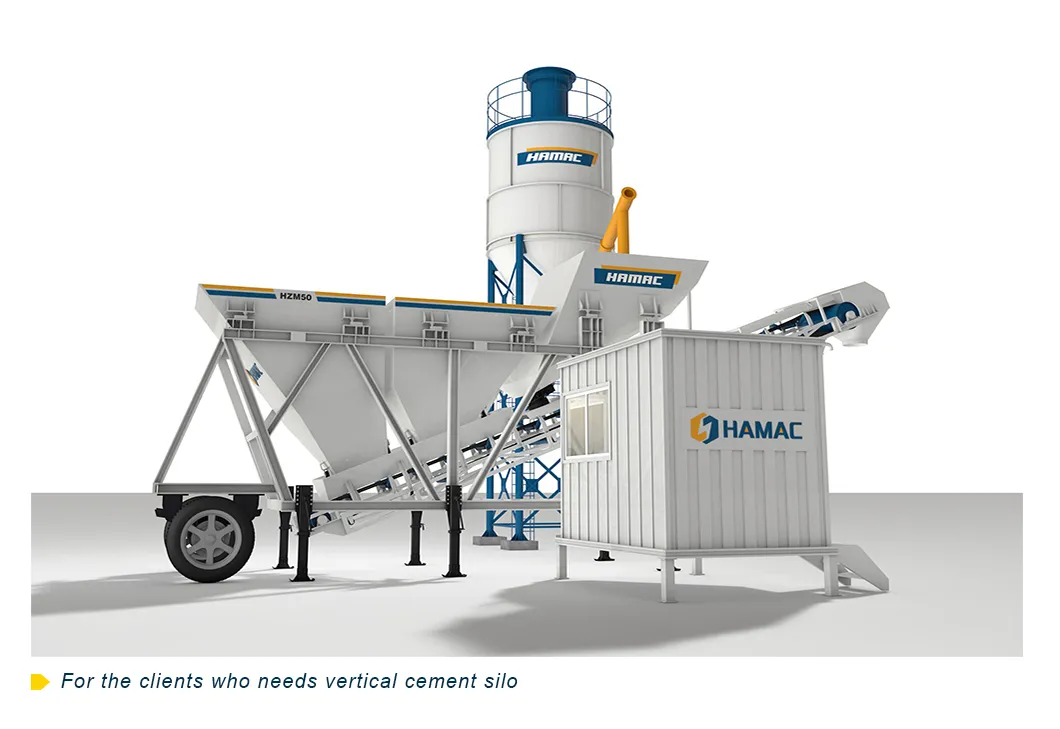

Control Unit
Operational View
Component Detail
Structure Detail
Frequently Asked Questions
What is the theoretical capacity of the HZM35 model?
The HZM35 model has a theoretical capacity of 35 m³/h.
What brands of electronic components are used in the control system?
The system utilizes top-class SIEMENS and SCHNEIDER brand electronic components integrated with a PLC.
What is the maximum aggregate size the plant can handle?
The plant can handle a maximum aggregate size of 60mm, with an upper limit of 80mm.
Is the color of the batching plant customizable?
Yes, the plant comes with customizable color options to meet client requirements.
What is the standard discharging height for these models?
The standard discharging height for the HZM25, HZM35, and HZM50 models is 3800mm.
How is water quantity controlled in the mixing process?
Water quantity is managed by a water pump controlled by a time-relay, which regulates the volume by controlling the pump's operation time.
